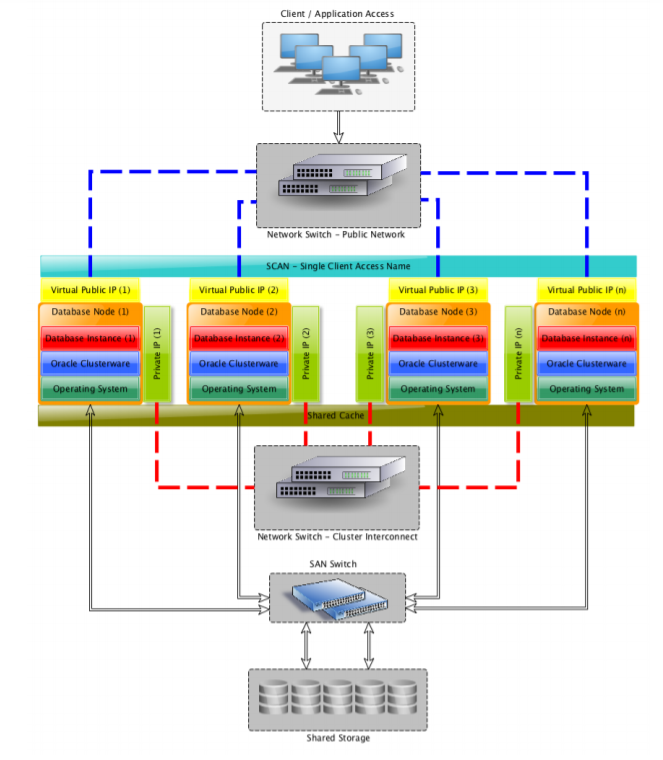

Oracle Grid Infrastructure from 11g R2 now provides RAC HAIP, which is link aggregation moved to the clusterware level. Instead of bonding the network adapters on the OS side, Grid Infrastructure in instructed to use multiple network adapters. Grid Infrastructure will still start HAIP even if the system is configured with only one private network adapter. Shows the resource name ora.cluster_interconnect.haip is online.
Starting 11gR2, Oracle supports up to 4 redundant interconnects that will be automatically managed by the cluster for fail-over and load balancing.
Following procedure shows how to add a new private interconnect to an existing RAC cluster.
Before making this change, check on all nodes if any resource is OFFLINE.
> All the CRS resources should be online.
> In one case, we had ADVM (12c) STABLE and we got errors:
> Check to see what private interfaces are already registered
** IMPORTANT: Make sure your second/redundant Private has DIFFERENT SUBNET
List all the interfaces on the server
Make sure that the new private interface that you are going to add is correctly plumbed
On all other nodes - it has to be on the same interface name
Each NIC used in the HAIP configuration must be in its own subnet, if the same subnet is used and the NIC having its subnet first in the routing table fails you can experience a node eviction
Each NIC defined as a cluster interconnect on a given node will have a static ip address (Private IP) assigned to it and each cluster interconnect NIC on a given node must be on a unique subnet. If any one of the cluster interconnect NICs is down on a node, then the subnet associated with the down NIC is considered not usable by any node of the cluster
#####################################
Check HAIP Information Before Adding
#####################################
[oracle@host01 bin]$ ./crsctl stat res -t -init
----------------------------------------------------------------------------------------------------
Name Target State Server State details Cluster Resources
----------------------------------------------------------------------------------------------------
ora.asm 1 ONLINE ONLINE host01 Started,STABLE
ora.cluster_interconnect.haip 1 ONLINE ONLINE host01 STABLE
oifcfg shows , only one adapter is defined for the Cluster Interconnect.
[oracle@host01 bin]$ ./oifcfg getif
eth0 192.168.56.0 global public
eth1 192.168.10.0 global cluster_interconnect
The ifconfig command shows that network device eth2 is part of two subnets.
[oracle@host01 bin]$ ifconfig -a
eth0 Link encap:Ethernet HWaddr 08:00:27:98:EA:FE
inet addr:192.168.56.71 Bcast:192.168.56.255 Mask:255.255.255.0
inet6 addr: fe80::a00:27ff:fe98:eafe/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:947 errors:0 dropped:0 overruns:0 frame:0
TX packets:818 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:100821 (98.4 KiB) TX bytes:92406 (90.2 KiB)
eth2 Link encap:Ethernet HWaddr 08:00:27:54:73:8F
inet addr:192.168.10.1 Bcast:192.168.10.255 Mask:255.255.255.0
inet6 addr: fe80::a00:27ff:fe54:738f/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:9000 Metric:1
RX packets:406939 errors:0 dropped:0 overruns:0 frame:0
TX packets:382298 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:445270636 (424.6 MiB) TX bytes:202801222 (193.4 MiB)
eth2:1 Link encap:Ethernet HWaddr 08:00:27:54:73:8F
inet addr:192.168.225.190 Bcast:192.168.255.255 Mask:255.255.0.0
UP BROADCAST RUNNING MULTICAST MTU:9000 Metric:1
When Grid Infrastructure is stopped, the ifconfig command will no longer show the eth1:1 device. The gv$cluster_interconnects view shows the HAIP subnets for each instance.
select
inst_id,
name,
ip_address
from
gv$cluster_interconnects;
INST_ID NAME IP_ADDRESS
---------- --------------- ----------------
1 eth2:1 192.168.225.190
2 eth2:1 192.168.230.98
#####################################
Adding Secondary Private Network / HAIP
#####################################
While HAIP is running, there is no redundancy or additional network bandwidth because only one network interface is configured. If a second network interface is available for the private network, it will need to be added to Grid Infrastructure. The device needs to be a well-configured network adapter in the operating system. The new network interface needs to have the same configuration as the current interface, i.e. both must be on the same subnet, have the same MTU size, etc. The oifcfg command is used to set the new interface as a cluster_interconnect device.
$ oifcfg iflist
eth0 10.0.2.0 <--local router
eth1 192.168.56.0 <-- public Interface
eth2 192.168.10.0 <-- RAC cluster_interconnect
eth2 192.168.0.0 <-- RAC used
eth3 192.168.0.0 <-- Our new device we want to add to the cluster_interconnect
oifcfg iflist -p -n ( eg only )
eth0 192.168.4.0 PRIVATE 255.255.255.0
eth1 192.168.0.128 PRIVATE 255.255.255.128
eth1 192.168.0.0 UNKNOWN 255.255.0.0
Note:
– The first column is the network adapter name.
– The second column is the subnet ID.
– The third column indicates whether it’s private, public or unknown according to RFC standard, it has NOTHING to do whether it’s used as a private or public network in Oracle Clusterware.
– The last column is the netmask.
oifcfg setif <interface-name>/<subnet>:<cluster_interconnect|public>
[oracle@host01 bin]$ ./oifcfg setif -global eth3/192.168.10.0:cluster_interconnect,asm
The device eth3 is now part of the Cluster Interconnect. The commands do not need to be repeated on all nodes as Grid Infrastructure takes care of that for us. On host02, the device is already configured.
[oracle@host02 bin]$ ./oifcfg getif
eth1 192.168.56.0 global public
eth2 192.168.10.0 global cluster_interconnect
eth3 192.168.10.0 global cluster_interconnect
Grid Infrastructure needs to be restarted on all nodes.
[root@host01 bin]# ./crsctl stop crs
[root@host01 bin]# ./crsctl start crs
Once the cluster nodes are back up and running, the new interface will be part of the RAC HAIP configuration.
[root@host01 ~]# ifconfig ?a
eth1 Link encap:Ethernet HWaddr 08:00:27:98:EA:FE
inet addr:192.168.56.71 Bcast:192.168.56.255 Mask:255.255.255.0
inet6 addr: fe80::a00:27ff:fe98:eafe/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:5215 errors:0 dropped:0 overruns:0 frame:0
TX packets:6593 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:2469064 (2.3 MiB) TX bytes:7087438 (6.7 MiB)
eth2 Link encap:Ethernet HWaddr 08:00:27:54:73:8F
inet addr:192.168.10.1 Bcast:192.168.10.255 Mask:255.255.255.0
inet6 addr: fe80::a00:27ff:fe54:738f/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:9000 Metric:1
RX packets:3517 errors:0 dropped:0 overruns:0 frame:0
TX packets:2771 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:789056 (770.5 KiB) TX bytes:694387 (678.1 KiB)
eth2:1 Link encap:Ethernet HWaddr 08:00:27:54:73:8F
inet addr:192.168.21.30 Bcast:192.168.127.255 Mask:255.255.128.0
UP BROADCAST RUNNING MULTICAST MTU:9000 Metric:1
eth3 Link encap:Ethernet HWaddr 08:00:27:6A:8B:8A
inet addr:192.168.10.3 Bcast:192.168.10.255 Mask:255.255.255.0
inet6 addr: fe80::a00:27ff:fe6a:8b8a/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:9000 Metric:1
RX packets:857 errors:0 dropped:0 overruns:0 frame:0
TX packets:511 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:158563 (154.8 KiB) TX bytes:64923 (63.4 KiB)
eth3:1 Link encap:Ethernet HWaddr 08:00:27:6A:8B:8A
inet addr:192.168.170.240 Bcast:192.168.255.255 Mask:255.255.128.0
UP BROADCAST RUNNING MULTICAST MTU:9000 Metric:1
The new interface is also found in the gv$cluster_interconnects view.
select
inst_id,
name,
ip_address
from
gv$cluster_interconnects;
INST_ID NAME IP_ADDRESS
---------- --------------- ----------------
1 eth2:1 192.168.21.30
1 eth3:1 192.168.170.240
2 eth2:1 192.168.75.234
2 eth3:1 192.168.188.35
#####################################
Testing HAIP
#####################################
Stop eth2 at OS level and verify eth3
# ifconfig eth2 down
# ifconfig eth3
--> Custer_interconnect failed over from eth2:1 to eth3:2 - eth2 is not used anymore
Re-enable eth2 again at OS level
# ifconfig eth2 up
--> Wait some seconds to see that failed_over cluster_interconnect is back on eth2
#####################################
Disable haip service and haip dependencies
#####################################
Disable :
[ora12c1:root]:/>crsctl modify res ora.cluster_interconnect.haip -attr "ENABLED=0" -init
Enable :
[ora12c1:root]:/>crsctl modify res ora.cluster_interconnect.haip -attr "ENABLED=0" -init
#####################################
Reference
#####################################
How to Modify Private Network Information in Oracle Clusterware (Doc ID 283684.1)
https://www.oracle.com/technetwork/products/clusterware/overview/interconnect-vlan-06072012-1657506.pdf
https://docs.oracle.com/database/121/CWLIN/networks.htm#CIHIJAJB
ID 1481481.1
