Oracle 12.1.0.2 to 19c Rac in place upgrade using response file
Below are steps we followed to silent upgrade 2 node 12.1.0.2 rac to 19c on same server.
Before we start upgrade its necessary to have strong rollback plan , hence will be highlighting rollback plan Also . Please ensure we have proper database and binary backups in place .
Before we start upgrade , please note 19c upgrade will need some 32gb free space in grid diskgroup . Ensure to check free space rightly from asmcm>lsdg under usable free ms , rather checking from sqlplus . Its better to have 40gb free space in grid home before we start upgrade
After upgrade its also important to track that your backups are Successful and user upgrade their client to 19c
There is also AutoUpgrade Tool as per (Doc ID 2485457.1) introduced which we can try to explore .
#################### Take necessary backups ####################
| 1) Add newly allocated disk to Ocr diskgroup |
| 2) Take Tar backup of grid home and database home |
| 3) Take backup of asm metadata , ocr and olr |
| 4) Verify dataabase full backup is taken |
| 5) Verify dataguard is in sync |
#################### Grid upgrade ####################
1) On both nodes as root
o+r /etc/inittab
2) Stop dataguard log shipping
3) on both nodes make 19.3.0 and grid directory with grid user ownership
4) Download and unzip Grid software On 1st node only
5) Prepare response file on 1st node only . Right response file parameter is very crucial for upgrade to be successful .
/oragridzj/app/19.3.0/grid/install/response/gridsetup.rsp
INVENTORY_LOCATION=/oragridzj/app/oraInventory
oracle.install.option=UPGRADE
ORACLE_BASE=/oragridzj/app/grid
oracle.install.asm.OSDBA=oinstall
oracle.install.asm.OSOPER=oinstall
oracle.install.asm.OSASM=asmadmin
oracle.install.crs.config.clusterName=Clustername
oracle.install.asm.diskGroup.name=CRS
oracle.install.crs.config.storageOption=FLEX_ASM_STORAGE
6) On 1st node only run pre upgrade script from new home and generate fix script if generated . as grid user
./runcluvfy.sh stage -pre crsinst -upgrade
-rolling -src_crshome /oragridzj/app/12.1.0/grid/ -dest_crshome /oragridzj/app/19.3.0/grid -dest_version 19.3.0.0.0 -fixup -verbose
7) on 1st node run grid setup dry run from new home . Smarting from 19c we have option to run dry run before we actually do upgrade . Note , this will copy software to 2nd node .
./gridSetup.sh -silent -dryRunForUpgrade
-responseFile /oragridzj/app/19.3.0/grid/install/response/gridsetup.rsp
8) Run actual run from 1st node
./gridSetup.sh -silent
-responseFile /oragridzj/app/19.3.0/grid/install/response/gridsetup.rsp
9) modify .profile to point to new home
10) On Both Nodes Verify files if looks fine and point to new grid home
/etc/init.d/init.ohasd
/etc/init.d/ohasd
/var/opt/oracle/olr.loc
.profile
/etc/initab
11) On 1st node only Detach old home and verify inventory on both nodes
/oragridzj/app/12.1.0/grid/oui/bin/runInstaller -detachHome -silent
ORACLE_HOME=/oragridzj/app/12.1.0/grid
12) Perform reboot test for both nodes
13) re enable dataguard log shipping and ensure dg in sync
#################### Database Pre upgrade Patch ####################

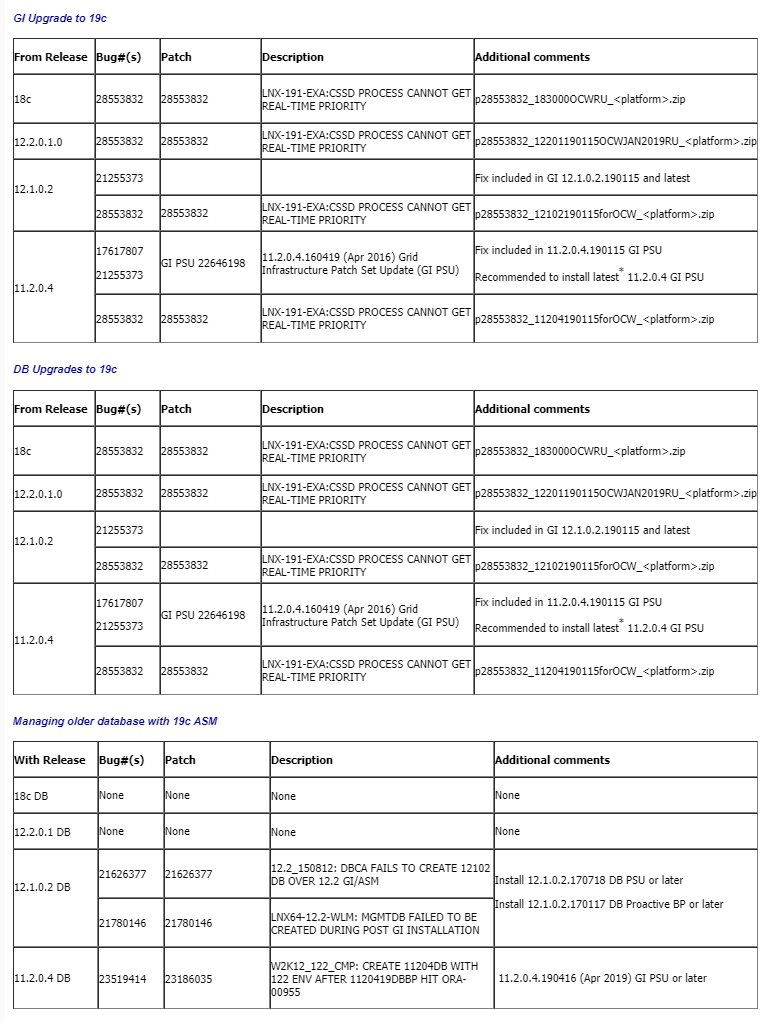

Patches to apply before upgrading Oracle GI and DB to 19c or downgrading to previous release (Doc ID 2539751.1)
If you are planning to upgrade your GI or RDBMS versions to 19c, you must consider applying the following patches before starting the upgrade operation.
#################### Database upgrade ####################
Before we start any upgrade as best practice create a guaranteed restore point
1) Stop Log shipping to Data guard
2) On Both Nodes ,
mkdir -p /oraswzj/app/oracle/product/19.3.0/dbhome_1
Download and unzip database software
3) On both nodes Run run.sh with below contents
./runInstaller -ignorePrereq -waitforcompletion -silent -responseFile /oraswzj/app/oracle/product/19.3.0/dbhome_1/install/response/db_install.rsp oracle.install.option=INSTALL_DB_SWONLY ORACLE_HOSTNAME=yourhosname UNIX_GROUP_NAME=oinstall INVENTORY_LOCATION=/oragridzj/app/oraInventory SELECTED_LANGUAGES=en,en_GB ORACLE_BASE=/oraswzj/app/oracle oracle.install.db.InstallEdition=EE oracle.install.db.OSDBA_GROUP=oinstall oracle.install.db.OSBACKUPDBA_GROUP=oinstall oracle.install.db.OSDGDBA_GROUP=oinstall oracle.install.db.OSKMDBA_GROUP=oinstall oracle.install.db.OSRACDBA_GROUP=oinstall SECURITY_UPDATES_VIA_MYORACLESUPPORT=false DECLINE_SECURITY_UPDATES=true
As a root user, execute the following script(s):
1. /u01/app/oracle/product/19.0.0/dbhome_1/root.sh
4) download pre upgraade jar ( 1st node )
Download the latest "preupgrade.jar" file from MOS 884522.1.
unzip in 19c home $ORACLE_HOME/rdbms/admin
unzip -o /u01/software/preupgrade_19_cbuild_??_lf.zip
5) run pre upgrade script from 19c home
export ORACLE_HOME=/orazj/oraswzj/app/oracle/product/12.1.0/dbhome_1
export ORACLE_SID=DBNAME
/oraswzj/app/oracle/product/19.3.0/dbhome_1/jdk/bin/java -jar /oraswzj/app/oracle/product/19.3.0/dbhome_1/rdbms/admin/preupgrade.jar TERMINAL TEXT >> dbname_precheck.log
6) run pre upgrade recomendation received from step 5 on all database
>> purge recyclebin : purge dba_recyclebin ;
>> utlrp.sql
>> undo , system , sysaux , temp tablespace
>> EXECUTE DBMS_STATS.GATHER_DICTIONARY_STATS;
@/oraswzj/app/oracle/cfgtoollogs/DBNAME/preupgrade/preupgrade_fixups.sql
7) copy dbs and network files from old home to new home
( both the servers )
cp $ORACLE_HOME/dbs/* /oraswzj/app/oracle/product/19.3.0/dbhome_1/dbs/
cp $ORACLE_HOME/network/admin/* /oraswzj/app/oracle/product/19.3.0/dbhome_1/network/admin/
8) enable rac on new home on both servers in 19c home
$ cd $ORACLE_HOME/rdbms/lib
make -f ins_rdbms.mk rac_on
make -f ins_rdbms.mk ioracle
9) Shutdown database from old home and remove from crs
shutdown old database ( srvctl stop database -d )
remove database from ocr from old home and add from new home
From old Oracle_Home:
% $ORACLE_HOME/bin/srvctl remove database -d db_name
10) update new home in .profile on both servers
11) Upgrade database from new home on 1st node only
sqlplus / as sysdba <<EOF
alter system set cluster_database=false scope=spfile ;
startup upgrade;
exit;
EOF
You can run the upgrade using either of the following commands. The second is actually just a shorthand for the former.
# Regular upgrade command.
cd $ORACLE_HOME/rdbms/admin
$ORACLE_HOME/perl/bin/perl $ORACLE_HOME/rdbms/admin/catctl.pl $ORACLE_HOME/rdbms/admin/catupgrd.sql
# Shorthand command.
$ORACLE_HOME/bin/dbupgrade
alter system set cluster_database=true scope=spfile ;
12) Update timezone , gather stats and run post script that will be generated in step 5
SELECT * FROM v$timezone_file;
-- Begin upgrade to the latest version.
SET SERVEROUTPUT ON
DECLARE
l_tz_version PLS_INTEGER;
BEGIN
l_tz_version := DBMS_DST.get_latest_timezone_version;
DBMS_OUTPUT.put_line('l_tz_version=' || l_tz_version);
DBMS_DST.begin_upgrade(l_tz_version);
END;
/
SHUTDOWN IMMEDIATE;
STARTUP;
-- Do the upgrade.
SET SERVEROUTPUT ON
DECLARE
l_failures PLS_INTEGER;
BEGIN
DBMS_DST.upgrade_database(l_failures);
DBMS_OUTPUT.put_line('DBMS_DST.upgrade_database : l_failures=' || l_failures);
DBMS_DST.end_upgrade(l_failures);
DBMS_OUTPUT.put_line('DBMS_DST.end_upgrade : l_failures=' || l_failures);
END;
/
-- Check new settings.
SELECT * FROM v$timezone_file;
COLUMN property_name FORMAT A30
COLUMN property_value FORMAT A20
SELECT property_name, property_value
FROM database_properties
WHERE property_name LIKE 'DST_%'
ORDER BY property_name;
sqlplus / as sysdba <<EOF
EXECUTE DBMS_STATS.GATHER_FIXED_OBJECTS_STATS;
EXECUTE DBMS_STATS.GATHER_DICTIONARY_STATS;
exit;
EOF
# AUTOFIXUP
sqlplus / as sysdba <<EOF
@/oraswzj/app/oracle/cfgtoollogs/dbname/preupgrade/postupgrade_fixups.sql
exit;
EOF
13) enable cluster mode to true
alter system set cluster_database=true scope=spfile ;
14) add database to crs from new home . If we are facing PRKC-1137
and PRCT-1402 , copy osdbagrp from grid home to 19c dbhome
cd $ORACLE_HOME/bin
mv osdbagrp osdbagrp.org
cp /oragridzj/app/19.3.0/grid/bin/osdbagrp .
srvctl add database -d DBNAME -o /oraswzj/app/oracle/product/19.3.0/dbhome_1 -s '+DATA/DBNAME/PARAMETERFILE/spfile.310.951432401' -role {PRIMARY | PHYSICAL_STANDBY
srvctl add instance -d DBNAME -i DBNAME1 -n SERVER1
srvctl add instance -d DBNAME -i DBNAME2 -n SERVER2
15) Perform post checks
check invalid count
verify dba_registry
/etc/init.d/init.ohasd
/etc/init.d/ohasd
/var/opt/oracle/olr.loc
.profile
/etc/initab
16) Detach 12c home from 1st node only
/oraswzj/app/oracle/product/12.1.0/dbhome_1/oui/bin/runInstaller
-detachHome -silent ORACLE_HOME=/oraswzj/app/oracle/product/12.1.0/dbhome_1
17) Fix netbackup for database backups
A) create softlink in 19chome/lib pointing to netbackup . Check 12c for reference
B) Correct database home path in backup script
18) Start dataguard log shipping and verify log sync
19) update monitoring , upgrade catalog database . If upgrade catalog fails
RMAN-07539: insufficient privileges to upgrade the catalog schema
Refer : Doc ID 2558120.1
SQL> grant CREATE ANY CONTEXT to rman;
SQL> > grant drop ANY CONTEXT to rman;
#################### Restart database upgrade from where it failed failed ####################
1) Check logs where
grep -i 'error at line' catupgrd*.log
PHASE_TIME___START 15 15-01-16 08:49:41
2) Start upgrade from step where it failed
cd $ORACLE_HOME/bin
dbupgrade -p 15
######################## rhpserver / mgmtdb disable after 19c upgrade ####################
If failed to failed to run Pre upgrade patch before starting upgrade procedure mgmt database will be in disabled state after upgrade.
In 19c Mgmt database is optional , but still if you want to fix, we can use below procedure to bring it online .
Bring mgmt online
1)
The first thing is to bring up the MGMTDB in the 12.1 GI_HOME.
srvctl enable mgmtdb
srvctl start mgmtdb
srvctl status mgmtdb
2)
Once the MGMTDB is up and running, you need to drop the RHP service that was created during the rootupgrade process. This has to be done from the 18.5 GI_HOME.
[root@node2 ~]# env | grep ORA
ORACLE_SID=+ASM2
ORACLE_BASE=/u01/app/oracle
ORACLE_HOME=/u01/app/18.5.0/
[root@node2 ~]# srvctl remove rhpserver -f
3) Now that the RHP service has been removed, we need to remove the MGMTDB in 12.1.
########################################
# As root user in BOTH nodes
########################################
#Node 1
[root@node1 ~]# export ORACLE_HOME=/u01/app/12.1.0.2/grid
[root@node1 ~]# export PATH=$PATH:$ORACLE_HOME/bin
[root@node1 ~]# crsctl stop res ora.crf -init
[root@node1 ~]# crsctl modify res ora.crf -attr ENABLED=0 -init
#Node 2
[root@node2 ~]# export ORACLE_HOME=/u01/app/12.1.0.2/grid
[root@node2 ~]# export PATH=$PATH:$ORACLE_HOME/bin
[root@node2 ~]# crsctl stop res ora.crf -init
[root@node2 ~]# crsctl modify res ora.crf -attr ENABLED=0 -init
########################################
# As oracle User on Node 1
########################################
oracle@node1 : ~&gt; export ORACLE_HOME=/u01/app/12.1.0.2/grid
oracle@node1 : ~&gt; export PATH=$PATH:$ORACLE_HOME/bin
oracle@node1 : ~&gt; srvctl relocate mgmtdb -node node1
oracle@node1 : ~&gt; srvctl stop mgmtdb
oracle@node1 : ~&gt; srvctl stop mgmtlsnr
/u01/app/12.1.0.2/grid/bin/dbca -silent -deleteDatabase -sourceDB -MGMTDB
oracle@node1 : ~&gt; srvctl remove mgmtdb
Remove the database _mgmtdb? (y/[n]) y
########################################
##### Manually Removed the mgmtdb files
##### Verify that the files for MGMTDB match your environment before deleting them
########################################
ASMCMD&gt; cd DBFS_DG/_MGMTDB/DATAFILE
ASMCMD&gt; ls
SYSAUX.257.879563483
SYSTEM.258.879563493
UNDOTBS1.259.879563509
ASMCMD&gt; rm system.258.879563493
ASMCMD&gt; rm sysaux.257.879563483
ASMCMD&gt; rm undotbs1.259.879563509
ASMCMD&gt; cd ../PARAMETERFILE
ASMCMD&gt; rm spfile.268.879563627
ASMCMD&gt; cd ../TEMPFILE
ASMCMD&gt; rm TEMP.264.879563553
ASMCMD&gt; cd ../ONLINELOG
ASMCMD&gt; rm group_1.261.879563549
ASMCMD&gt; rm group_2.262.879563549
ASMCMD&gt; rm group_3.263.879563549
ASMCMD&gt; cd ../CONTROLFILE
ASMCMD&gt; rm Current.260.879563547
4)
Once the MGMTDB is deleted, then we run the mdbutil.pl (which you can grab from MOS Doc 2065175.1) and add the MGMTDB in the 18.5 GI_HOME.
##############################
# As oracle User on Node 1
##############################
oracle@node1 : ~&gt; env | grep ORA
ORACLE_SID=+ASM1
ORACLE_BASE=/u01/app/oracle
ORACLE_HOME=/u01/app/18.5.0/
oracle@node1 : ~&gt; ./mdbutil.pl --addmdb --target=+DBFS_DG
##############################
# As root user in BOTH nodes
##############################
[root@node1 ~]# crsctl modify res ora.crf -attr ENABLED=1 -init
[root@node1 ~]# crsctl start res ora.crf -init
[root@node2 ~]# crsctl modify res ora.crf -attr ENABLED=1 -init
[root@node2 ~]# crsctl start res ora.crf -init
5)
Once the MGMTDB has been recreated, we now rerun the gridSetup.sh -executeConfigTools command, and we can now see that the cluster status is NORMAL and everything is running as expected in 18.5 version.
oracle@node1 : ~&gt; env | grep ORA
ORACLE_SID=+ASM1
ORACLE_BASE=/u01/app/oracle
ORACLE_HOME=/u01/app/18.5.0/
/u01/app/18.5.0/grid/
crsctl query crs activeversion -f
crsctl check cluster -all
Reference :
How to Move/Recreate GI Management Repository (GIMR / MGMTDB) to Different Shared Storage (Diskgroup, CFS or NFS etc) (Doc ID 1589394.1)
12.2: How to Create GI Management Repository (Doc ID 2246123.1)
MDBUtil: GI Management Repository configuration tool (Doc ID 2065175.1)
######################## Rollback Plan for Grid home ####################
1) On 1st node only , Delete Mgmt database with grid user on main node
srvctl status mgmtdb
$ORACLE_HOME/bin/dbca -silent -deleteDatabase -sourceDb -MGMTDB
2) On Both nodes , Downgrade grid with root user on all node
$ORACLE_HOME/crs/install/rootcrs.sh -downgrade
3) Remove the 19c grid_home from Active cluster inventory: ( only from one node)
cd /sharearea/crs/grid19c/oui/bin
oracle$./runInstaller -nowait -waitforcompletion -ignoreSysPrereqs -updateNodeList -silent CRS=false
4) On first node only Update the active cluster inventory with ORACLE 12C grid home ( only from one node)
oracle$ ./runInstaller -nowait -waitforcompletion -ignoreSysPrereqs -updateNodeList -silent CRS=true
5) On first node only START THE CRS FROM ORACLE 12C GRID HOME for all nodes
:/crs/app/oracle/product/grid12c/bin# ./crsctl start crs
6) On first node only Remove MGMTDB service from cluster.
srvctl remove mgmtdb -f
7) On first node only Create the MGMTDB CONTAINER DB:
/crs/app/oracle/product/grid12c/bin/dbca -silent -createDatabase -createAsContainerDatabase true
-templateName MGMTSeed_Database.dbc -sid -MGMTDB -gdbName _mgmtdb -storageType ASM -diskGroupName +MGMT
-datafileJarLocation /crs/app/oracle/product/grid12c/assistants/dbca/templates -characterset AL32UTF8
-autoGeneratePasswords -skipUserTemplateCheck
8) On first node only
Configure the Management Database by running the Configuration Assistant from the location
-templateName MGMTSeed_Database.dbc -sid -MGMTDB -gdbName _mgmtdb -storageType ASM -diskGroupName +MGMT
-datafileJarLocation /crs/app/oracle/product/grid12c/assistants/dbca/templates -characterset AL32UTF8
-autoGeneratePasswords -skipUserTemplateCheck
9) On first node Only
Configure the Management Database by running the Configuration Assistant from the location
$ORACLE_HOME/bin/mgmtca —local.
10) On first node only , As grid user, run the post_gimr_ugdg.pl script from 19c Grid home:
$ $ORACLE_HOME/crs/install/post_gimr_ugdg.pl -downgrade -clusterType SC -destHome /u01/app/19.0.0/grid
-lowerVersion 12.2.0.1.0 -oraBase /u01/app/grid2
########## Deconfigure 19c grid if upgrade fails and rollback steps not possible ##########
1) Deconfigure from both nodes from 19c home
/oragrid/app/19.3.0/grid//crs/install/rootcrs.sh -deconfig -force -verbose
2) Cleanup below files if present,in both nodes:
ls -l /oragrid/app/grid/crsdata/nodename/crsconfig/ckptGridHA_nodename.xml
ls -l /oragrid/app/grid/crsdata/@global/crsconfig/ckptGridHA_global.xml
If it's still there, please remove it manually with "rm" command on all nodes
3) If GPNP profile is different between nodes/setup, clean it up on all nodes as grid user
$ find <GRID_HOME>/gpnp/* -type f -exec rm -rf {} \;
4) Nullify all 3 ocr disk ( Please do only for Ocr disk . if you perform for data disk your data will be lost )
dd if=/dev/zero of=/dev/raw/raw13 bs=1048576 count=50
5) Run root.sh again on both node from 12c home
/oragrid/app/12.1.0/grid/root.sh
6) Add database and instance to ocr using srvctl add database / srvctl add instance
1) Deconfigure from both nodes from 19c home
/oragrid/app/19.3.0/grid//crs/install/rootcrs.sh -deconfig -force -verbose
2) Cleanup below files if present,in both nodes:
ls -l /oragrid/app/grid/crsdata/nodename/crsconfig/ckptGridHA_nodename.xml
ls -l /oragrid/app/grid/crsdata/@global/crsconfig/ckptGridHA_global.xml
If it's still there, please remove it manually with "rm" command on all nodes
3) If GPNP profile is different between nodes/setup, clean it up on all nodes as grid user
$ find <GRID_HOME>/gpnp/* -type f -exec rm -rf {} \;
4) Nullify all 3 ocr disk ( Please do only for Ocr disk . if you perform for data disk your data will be lost )
dd if=/dev/zero of=/dev/raw/raw13 bs=1048576 count=50
5) Run root.sh again on both node from 12c home
/oragrid/app/12.1.0/grid/root.sh
6) Add database and instance to ocr using srvctl add database / srvctl add instance
######################## Rollback Plan for Database home ####################
1) Fix timezone if we have run timezone script as part of upgrade. To find which time zone file version your database is currently using, query V$TIMEZONE_FILE
SQL> select * from V$TIMEZONE_FILE;
For example:
If the query returns timezlrg_18.dat in the column V$TIMEZONE_FILE.FILENAME, then check if the file is present in the target Oracle Home:
Linux and UNIX
$ORACLE_HOME/oracore/zoneinfo/timezlrg_18.dat
2) On 1st node only Downgrade from 19c database
Start 1st instance only with cluster database to false
from 19c home
$cd $ORACLE_HOME/bin
$./dbdowngrade
or
from 19c home
SQL> startup downgrade
@catdwgrd.sql
shu
3) on 1st node only Reload from 12c home
startup upgrade
SQL> $ORACLE_HOME/rdbms/admin/catrelod.sql
shu
start
SQL> $ORACLE_HOME/rdbms/admin/utlrp.sql
4) On 1st node only , Gather stats ,
EXECUTE DBMS_STATS.GATHER_DICTIONARY_STATS;
execute dbms_stats.gather_fixed_objects_stats;
#################### Oracle reference links ####################
1) Restart Database upgrade from failed state
https://docs.oracle.com/en/database/oracle/oracle-database/19/upgrd/restarting-upgrade-specific-phase-that-failed-using-p.html#GUID-29A9C778-7AE6-4C2C-85E6-4ADDA8466A34
2) Downgrade Oracle database
https://docs.oracle.com/en/database/oracle/oracle-database/19/cwlin/
downgrading-oracle-standalone-cluster-12crelease2.html#GUID-C375E4DF-482B-4B14-8FF7-0332254F0547
https://docs.oracle.com/en/database/oracle/oracle-database/19/upgrd/downgrading-oracle-db-after-upgrade.html#GUID-0227D321-577E-47C5-A8C0-36991B8D0357
3) Upgrade reference
https://docs.oracle.com/en/database/oracle/oracle-database/19/upgrd/upgrading-oracle-database.html#GUID-CC88F262-3370-4FFA-8604-EDA9F20F56D9
https://docs.oracle.com/en/database/oracle/oracle-database/19/upgrd/database-upgrade-guide.pdf
Oracle 19c - Complete Checklist for Manual Upgrades to Non-CDB Oracle Database 19c (Doc ID 2539778.1)
4) Downgrade Grid
https://docs.oracle.com/en/database/oracle/oracle-database/19/cwlin/downgrading-to-oracle-grid-infrastructure-12c-release-1-12-1.html#GUID-DD425330-02F5-49B0-9CC9-D292234C8A6F
How to Deconfigure/Reconfigure(Rebuild OCR) or Deinstall Grid Infrastructure (Doc ID 1377349.1)
How to Abort Grid Infrastructure Upgrade Without Taking a Cluster Outage (Doc ID 1910156.1)
5) Fix pre upgrade issues
Oracle 19c Preupgrade Log Warns Oracle Streams must be Removed Though no Streams is Setup (Doc ID 2666384.1)
#################### Installing 19c client in silent mode ####################
1) Download 19c software and unzip it
2) Prepare response file /client/response/client_install.rsp
INVENTORY_LOCATION=/dmapps/product/oraInventory
ORACLE_HOME=/dmapps/product/release/oracle/oracle/product/12.1.0/client_1
ORACLE_BASE=/dmapps/product/release
3) Run below from install directory
cd /software/client
$ ./runInstaller -ignoreSysPrereqs -showProgress -silent -responseFile /software/client/response/client_install.rsp
#################### Issue faced during upgrade ####################
1) Grid upgrade failed :
SInce we doing silent upgrade , it failed few times since response file was not right . Once we drafted right response file , it was piece of cake
2) MGMT database was not upgraded .
Since we missed to apply pre patch , mgmt database was not upgraded . . Later we manually upgraded mgmt database
Hello.
ReplyDeleteRegarding the below points :
9) modify .profile to point to new home
10) On Both Nodes Verify files if looks fine and point to new grid home
/etc/init.d/init.ohasd
/etc/init.d/ohasd
/var/opt/oracle/olr.loc
.profile
/etc/initab
Where is the .profile located? Is it .bash_profile you are speaking of?
